Z-Wave Fan Coil Thermostat
The only fan coil thermostat certified by the Z-Wave Alliance: thinnest on the market, supports AC and DC connections at the same time
RRP $188
(VAT excl.)
We back all of our HELTUN products with a 3 years extendable warranty.
Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
Take control
COMPATIBLE WITH
YOUR FAVORITE HUB
%20Compatibility.jpg)
NOT JUST FAN COIL UNITS
Fan Coil Thermostat by HELTUN is a perfect tool to integrate your 2-pipe and 4-pipe fan coil units into a smart Z-Wave environment providing remote control and energy savings.
​
On top of that there are a lot of use cases that are possible only with HELTUN Z-Wave Fan Coil Thermostat: water radiators, water and electric underfloor heating, DC floor convectors, controlling a fan or valve which voltage is different from the thermostat's main power voltage, connecting NO and NC types of valves, 3-wire valves, even using it with 0-10V fan coil units through a Z-Wave dimmer.
EleganT & THIN
We’re not just aiming at making smart home and IoT available for everyone. We want any HELTUN product to feel like a premium experience: starting from unboxing and after ten years of use.

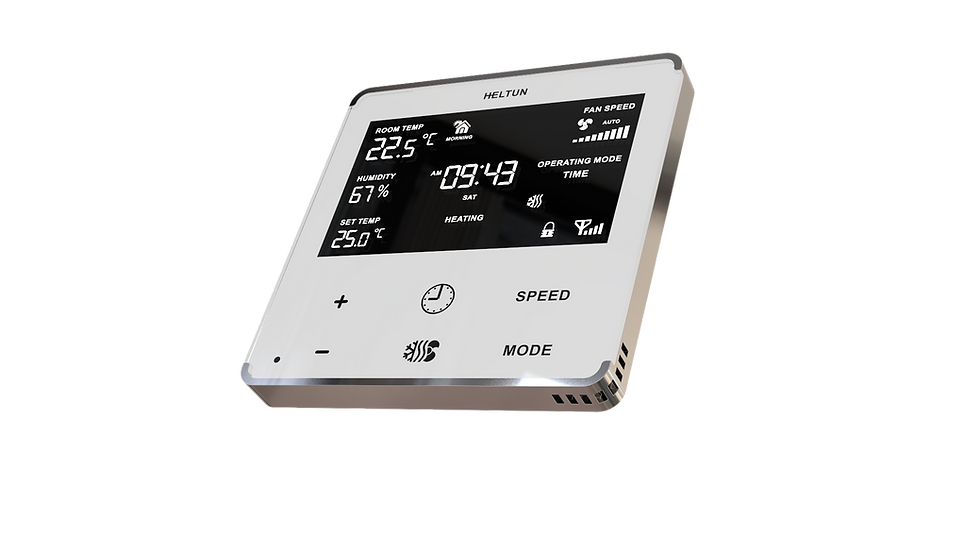

HELTUN's Heating Thermostat is the thinnest on the market. Its fire and short circuit resistant plastic casing is just 9mm thick.
Choose any style that suits your taste. Thermostat integrates seamlessly into your interior design and is available in several classy designs (white-white, white-silver, black-black, black-silver).
​
Please note that custom coloring is always available for bulk orders.
 |  |
|---|---|
 |  |
Internal SENSORS
Temperature sensor
Light sensor
Humidity sensor
Temperature sensor
Light sensor
Humidity sensor
INPUTS & OUTPUTS
The HELTUN Fan Coil Thermostat has 5 relay outputs each with max 5A load and two independent inputs for relay channels which allow it to control systems with different power sources for Fan Speed and Heating/Cooling control.
Input 1 with the required power source is for relay channels 1, 2 and 3, which can be loaded up to a max 15A and used for fan speed control.
Input 2 with the required power source is for relay channels 4 and 5, which can be loaded up to a max 10A and used for heating/cooling control
Device Power
24-265 VAC/VDC
Relays dry contact output
Input for 4 and 5 Relays
Used for heating/cooling control
Input for 1, 2 and 3 Relays Used for fan speed control
Device Power
24-265 VAC/VDC
Relays dry contact output
Input for 4 and 5 Relays
Used for heating/cooling control
Input for 1, 2 and 3 Relays Used for fan speed control
KNOW
HOW MUCH ENERGY
YOU ARE USING
With our built-in power consumption software logic you can monitor precisely how much energy was used during any particular day, week or month.
Just specify the consumption of the load in watts for each relay channel and the special logic will calculate total consumption relatively to the time since the output is in the ON state.
HELTUN touch buttons are so sensitive that they react even before you physically touch them, processing the action at a 1-2mm distance. The buttons are:
“SPEED” button to control the fan speed (cooling, heating or ventilation power).
"Mode" button to quickly change the operating mode of the thermostat. Hold the Mode button to open settings menu that allows to modify up to 20 various parameters.
"Time" button that allows you to quickly adjust the temperature for different time of day.
​
“Climate” button – for selecting climate mode: Heating and Cooling, Heating only, Cooling only, Ventilation only.
"+" and "-" buttons for adjusting the temperature.
CONTROL PANEL
HELTUN touch buttons are so sensitive that they react even before you physically touch them, processing the action at a 1-2mm distance. The buttons are:
“SPEED” button to control the fan speed (cooling, heating or ventilation power).
"Mode" button to quickly change the operating mode of the thermostat. Hold the Mode button to open settings menu that allows to modify up to 20 various parameters.
"Time" button that allows you to quickly adjust the temperature for different time of day.
​
“Climate” button – for selecting climate mode: Heating and Cooling, Heating only, Cooling only, Ventilation only.
"+" and "-" buttons for adjusting the temperature.
CONTROL PANEL
SCREEN
HELTUN’s large LCD screen shows all the necessary information simultaneously and does not require any additional commands to access it.
There is an instant access to information from all sensors: ambient room temperature, air humidity, current temperature settings, thermostat’s operating mode, climate mode, fan speed, date and time.
​
Automatic screen brightness control seamlessly adjusts to the ambient light conditions, making it easy to read even in the dark.
MODES
OPerating MODES
COM and ECO modes constantly maintain the set temperature. The user can easily change the temperature set for each mode. To do this, simply press the "Mode" button to select the desired mode, and use the "+" and "-" buttons to set the required temperature.
​
TIME mode allows to set a different temperature for Morning, Day, Evening and Night period for each 7 days of the week.
Climate MODES
In Heating & Cooling mode the thermostat will constantly maintain the desired temperature. If the ambient room temperature will be higher than the Set Temperature the device will go to the Cooling state. In case the room temperature drops the thermostat will go to the Heating state.
In Heating only mode the thermostat will go to Heating state if the ambient room temperature will be lower than the Set Temperature and will go to IDLE state if the room temperature is higher than that required.
In Cooling only mode the thermostat will go to Cooling state if the ambient room temperature will be higher than the Set Temperature and will go to IDLE state if the room temperature is lower than required.
In Ventilation mode the thermostat will only ventilate.
TIME MODE
Reduce your power bill by up to 50% and help look after the environment by activating the TIME mode.
Adjust home temperature according to your habits by reducing it while you are away from home and increasing in the evenings and early mornings.
On average, people spend about 12-14 hours a day at home. The rest of the time the house is empty and only needs minimum heating. Consider 7/8 hours of sleeping time in the hours spent at home, keeping in mind that the optimal sleeping temperature is considered to be 18 degrees Celsius.
The thermostat can be set individually for morning, day, evening, night. For example, it can be assigned for Monday morning start at 7.00, then day temperature starting at 9.00 (when absent for work etc.), then evening starting at 18:00 (half an hour before occupants return). The night regime then begins at 23.30 (bedtime).
You can have separate temperature settings for all 4 periods. But this is not all; as temperature can be programmed for each day of the week, weekends can be handled differently.
FAN SPEED
Fan Speed (heating, cooling or ventilation power) can be controlled manually or in Auto mode.
There are 4 speed levels – Off, Low, Medium, High.
In Auto mode the thermostat logic will automatically select the speed level regarding the difference of the desired temperature and ambient room temperature.
​
• If the difference is less than 1.0C the thermostat will select Low speed level.
• If the difference is in range 1.0C – 2.0C the thermostat will select Medium speed level.
• If the difference is more than 2.0C the thermostat will select High speed level.
When the ambient room temperature reaches the required temperature, the thermostat will go to IDLE (fan off) state.
HYSteresis
Hysteresis defines when the system should switch the heating on or off when temperature changes. For example, if the desired temperature is 25 degrees Celsius and hysteresis value is set to 0.5 degrees, it will switch the heating on when ambient temperature drops to 24.5 degrees Celsius.
​
The higher your hysteresis value is set, the more energy you can save but at the same time the variations in your room temperature will be higher. The factory default is 0.5 degrees.
SafeTY FOR YOUR LOVED ONES
The HELTUN Z-Wave thermostat has a special feature to protect the floor from overheating; Under any circumstances, the thermostat will not allow the floor temperature to go above 40C, regardless of the mode, since it can be harmful to the soles of the feet. In case of a power cut or disconnection from the main power source, internal memory is not erased – once you switch the device back on, all your saved settings will be fully functional.
​
To prevent children from meddling with your thermostat settings, you can activate the special child-safe mode.
EASY INStallation
HELTUN devices can be easily installed into any standard wall socket (rectangular or round type).
Z-WAVE PLUS v2 (700) COMPATIBLE
You can connect HELTUN devices to a Smart Home gateway/controller using the latest Z-Wave Plus V2 700 platform. HELTUN features advanced Smart Start technology for easy system integration, and the Security 2 (S2) framework with AES 256 encryption for safe data transfer.
This thermostat is compatible with all Z-Wave certified controllers and devices that properly implement Z-Wave thermostat classes. Using a Z-Wave controller, you can manage all thermostat functions via a mobile application including temperature and mode changes, viewing accurate energy consumption charts, and much more.
Up to 5 separate devices can be connected to your HELTUN thermostat. You can associate it with any Z-Wave compatible ON/OFF switch, or other thermostat, to control different climate systems in a room. You can even connect motion sensors and change thermostat modes when people are detected in the house.
HELTUN devices are compatible with all Z-Wave frequencies for different countries (Europe, Russia, Israel, Australia, USA, India, Hong Kong, China, Japan, and Korea). The full list of Z-Wave regions and frequencies is available at Z-Wave Global Regions SiLabs page.
The correct frequency can be selected in the device menu.
​
HELTUN periodically releases new firmware with additional features and functionality which can be sent to devices via an encrypted OTA (Over-The-Air) update process.
Specifications & features
Specifications
Front frame dimensions: 89x89x9mm
Back dimensions: 53x53x28mm
Material: Flame retardant plastic, tempered glass
3 frame colors: Silver, Black, White
2 glass colors: White, Black (custom on request)
LCD: 72x42mm, black with white segments
6 sensitive capacitive touch buttons
Operating temperature: 0°C – +50°C
Power supply: 24 – 265 VAC/VDC
Power consumption: 1W
5 relays with resistive load up to 5A each
• 2 relays for cooling and heating valves
• 3 relays for fan speed
2 independent relay inputs, dry contact type
Relay life time: 100 000 switches
Embedded ambient light sensor
Embedded room temperature sensor
• Measurement range: -30°C to +80°C
• Accuracy: ±0.5°C
Embedded humidity sensor
• Measurement range: 0 – 80%RH
• Accuracy: ±3.0%RH
IP class: IP21
Z-Wave Frequency: All countries
Z-Wave SDK: V7.11.1
Z-Wave Plus module: ZGM130S
Features
Z-Wave Specs
Inclusion/exclusion into/from z-wave network
• Non Secure
• S0 secure
• S2 unauthorized, S2 authorized
Association control of Z-Wave devices in the network
3 operating modes with individual temperature set point:
• COM, ECO, TIME
4 time schedule for 7 days of the week:
• Morning, Day, Evening, Night
4 climate modes:
• Heating & Cooling,
• Heating only,
• Cooling only,
• Ventilation only
Software energy consumption meter logic
Consumption meter reset
Temperature sensors calibration
Choosing temperature hysteresis: 0.2°C - 10.0°C
Choosing temperature scale (Celsius / Fahrenheit)
Adjustable LCD brightness: Auto or Manual
LCD standby mode
Child lock (touch buttons lock)
Factory reset
OTA function (Firmware update over the air).
Z-WAVE DEVICE TYPE:
GENERIC_TYPE_THERMOSTAT
SPECIFIC_TYPE_THERMOSTAT_GENERAL_V2
SUPPORTED COMMAND CLASSES:
COMMAND_CLASS_ASSOCIATION,
COMMAND_CLASS_ASSOCIATION_GRP_INFO,
COMMAND_CLASS_BASIC,
COMMAND_CLASS_CLOCK,
COMMAND_CLASS_CONFIGURATION,
COMMAND_CLASS_DEVICE_RESET_LOCALLY,
COMMAND_CLASS_FIRMWARE_UPDATE_MD
COMMAND_CLASS_MANUFACTURER_SPECIFIC,
COMMAND_CLASS_METER,
COMMAND_CLASS_MULTI_CHANNEL,
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION,
COMMAND_CLASS_POWERLEVEL,
COMMAND_CLASS_SECURITY,
COMMAND_CLASS_SECURITY_2,
COMMAND_CLASS_SENSOR_MULTILEVEL,
COMMAND_CLASS_SUPERVISION,
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE,
COMMAND_CLASS_THERMOSTAT_MODE,
COMMAND_CLASS_THERMOSTAT_SETPOINT,
COMMAND_CLASS_THERMOSTAT_FAN_MODE,
COMMAND_CLASS_THERMOSTAT_FAN_STATE,
COMMAND_CLASS_TRANSPORT_SERVICE,
COMMAND_CLASS_VERSION,
COMMAND_CLASS_ZWAVEPLUS_INFO
